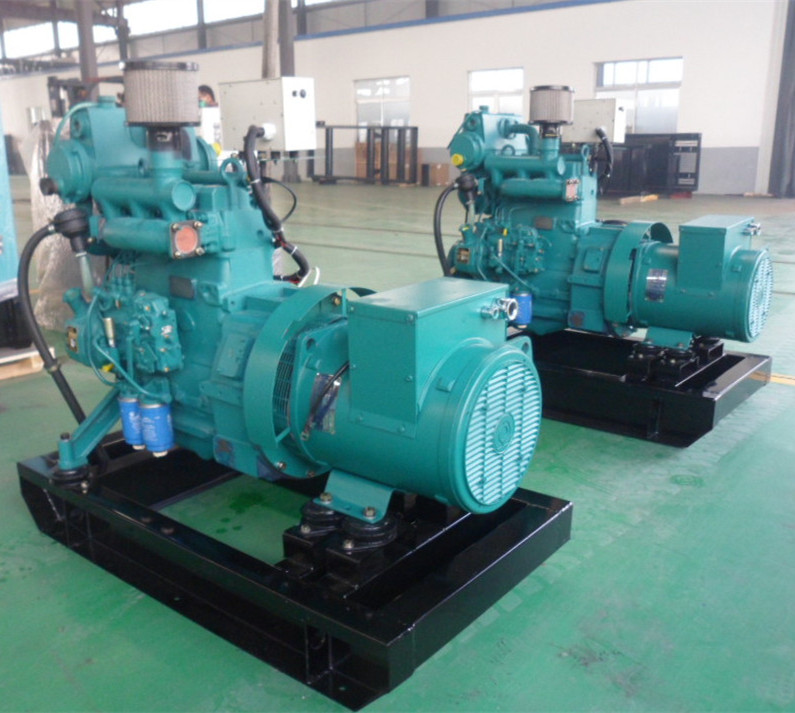

50kva to 500kva Cummins water cooled marine diesel generator

Performance Feature

Applied for continuous power generation

Engine and alternator will be mounted on a frame steel skid.

Built-in damper for anti-vibration.

Cummins brand diesel engine.

World Top brand AC alternator.

Advanced and reliable control module

Full range protection function and alarm shutdown feature.

Engine Features:

1.GenuineCummins Marinediesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8.Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Alternator Features:

1. World famous brand AC alternator:Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5.AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Digital Control panel

Controller Brand: Smartgen

Control Panel:English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.

Genor Power Equipment Co., Ltd is a Chinese factory producing engine driven welder ,diesel generator set, gas generator set, Marine generator ,silent generators, trailer generators, lighting tower generators, industrial ceiling fan and other industrial equipments.

The welder is from 160A to 1000Amps . The generator power range is from 5KVA to 3000KVA. We also provide relevant accessories processing , and customized generator producing (OEM)service.

Our factory was set up in 2000 and Located in Shenzhen,Guangdong Province,the most advanced area of manufacturing in China.
With the development , we have built the other factory in Shangdong province and have standard assemble workshop, spray paint workshop, sheet-metal workshop and loading testing workshop. we also have advanced equipment such as CNC punching machine, Bending machine, Laser cutting machine, Hydraulic shear machine, Digital Machine Tool, and Electronic Testing system.

Now, We have 3 Chief engineers, 5 Senior Mechanical Engineers, 5 Senior Electrical Engineers and more than 50 technic employees.

Our factory has obtained ISO9001: 2008 certificate, ISO9001:2004 environment certificate ,CE and CCC certificate.
