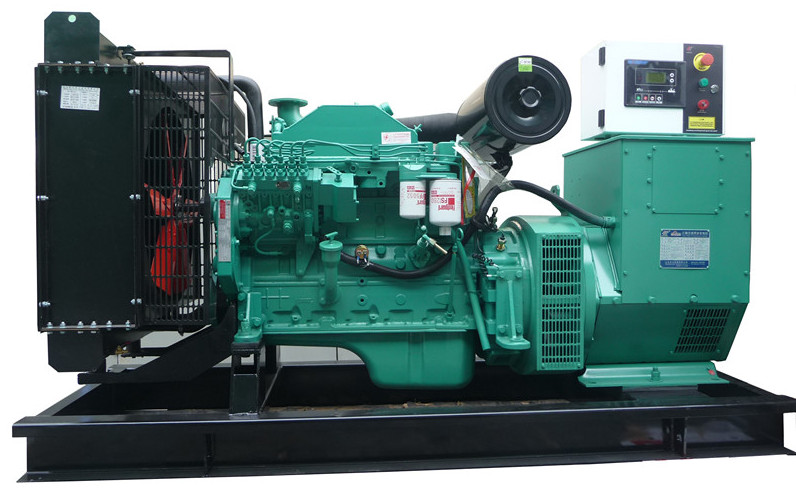

125 kva Cummins engine silent 100 kw generator price
Specifications:
Cummins is one of world top famous engines and widely acceptable
all over the world. Cummins Inc., a global power leader, is a
corporation of complementary business units that design,
manufacture, distribute and service engines and related
technologies, including fuel systems, controls, air handling,
filtration, emission solutions and electrical power generating
systems. Headquartered in Columbus, Indiana, (USA) Cummins serves
customers in approximately 190 countries and territories through a
network of more than 600 company-owned and independent distributor
locations and approximately 5,200 dealer locations.
Type | GNRC125 |
Frequency(50/60HZ) | 100KW/125KVA |
Overall description: Cummins Engine and Stamford Alternator Water cooled radiator, the fans driven by belt, with safety shield. 24 V Battery charging Alternator Alternator:Single bearing Alternator,IP23 Grading Protection, H
Insulation degree Shock absorber Dry air filter,Fuel filter,Oil filter Power output circuit breaker Harsen control panel(LCD display) 12 V battery and battery connection cables Exhaust pipe,Corrugated shock tube,flange,Muffler set Maintenance manuals Lubrication System
|
|
The products that we provide are all new, each unit all get through
the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time
for all our products. We take the full responsibility only in the
fault that created by the quality, the wearing-parts, daily
consumables and human error of operating & maintenance are not
included in.
- GB/T19001-2008
- SO9001:2008 Quality Control System
The main parameters of the generator set |
Technical data |
Genset Model | GNRC125 |
Prime Power | 100KW/125KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 2250*800*1300 |
Genset weight (kg) | 1250 |
Diesel Engine |
Brand | Cummins |
Model | 6BTAA5.9-G2 |
Number of Cylinders | 6 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 114*135 |
Displacement(L) | 5.9 |
Lubricating Capacity(L) | 16 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 210 g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | Stamford |
Model | UCI274E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control
Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with
the display of frequency table/water temperature/schedule/battery
voltmeter. The genset with low oil pressure, high water
temperature, over speed emergency, stop and other pre-protection. |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed,
temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from
ex-factory date. During the guarantee period, Genor will provide
the free easy-damageable spare parts of diesel engine caused by our
quality of production or raw material. After expiration, Genor
provides cost spare parts maintenance of gensets.

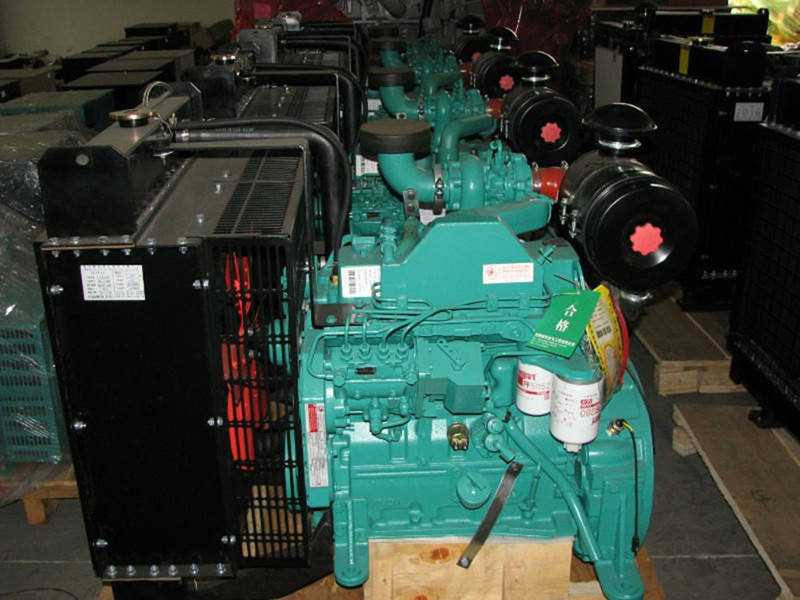

Cummins Engine

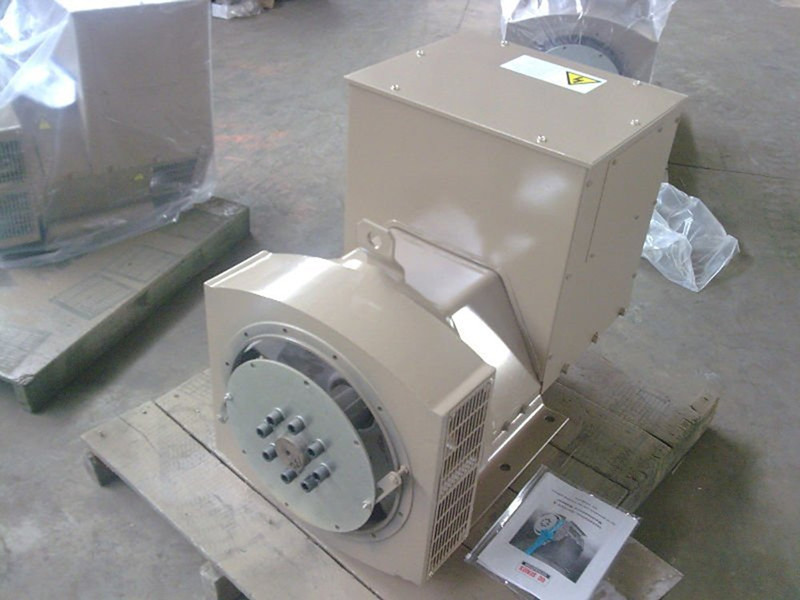

Original stamford alternator and certificate :

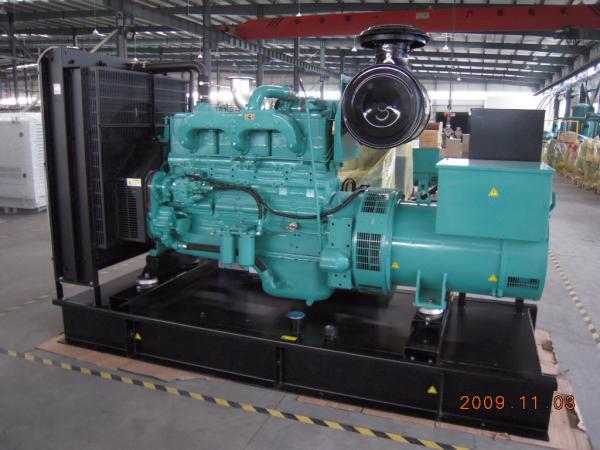

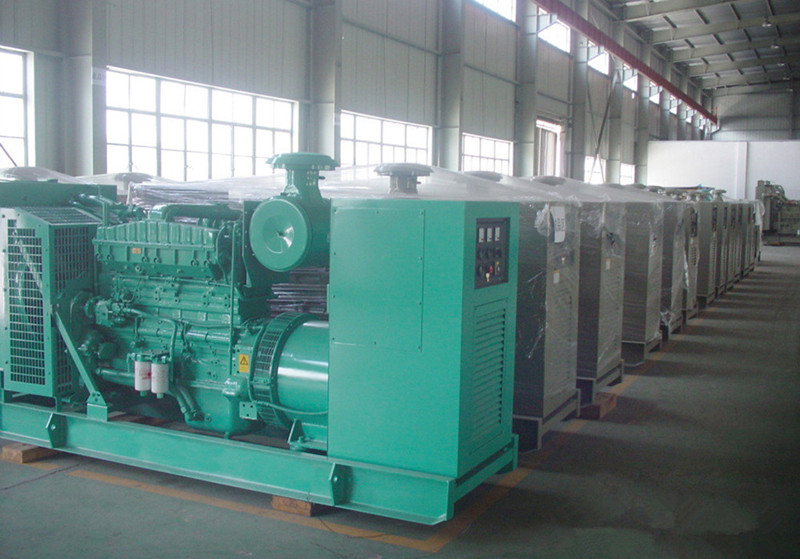

Cummins Open type Genset :
Silent Type Diesel Genset :
