3 phase Main power 150kva marine generator diesel air starter
electical digital control panel

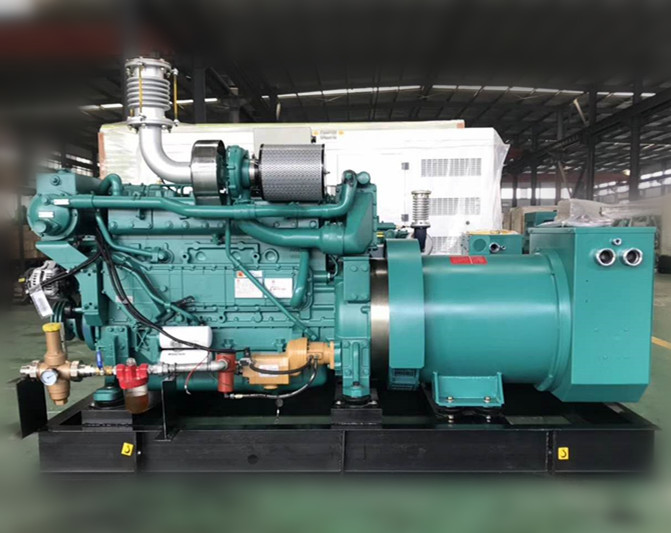

The 150kva marine diesel generator is approval with CCS or BV Classification Society Certificate and IMO.
It is equipped with marine type engine ,reliable brushless alternator ,air startng system ,heat exchanger
cooling system and remote control system .
Engine Features:
1. Genuine Marine diesel engine
2. 6-cylinder in-line or veer engine, 4-stroke, direct injection
3. Sea water cooled with heat exchanger
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet
type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Marine Diesel Generator Set
| Weichai Deutz 226B Series Diesel Engine |
| (400/230V/120C, 50Hz/60Hz, 3 P 4W) | (Electrical Starting, Dual-circulate water-cool) |
| Genset Model | Rated
Power
| Engine Model | Max*
output | Rated Speed | Governing Method |
| (KW) | Deutz | (KW) | (rpm) |
| GNRDM-12 | 12 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-16 | 16 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-20 | 20 | D226B-3CD | 30 | 1500 | Mechanical |
| GNRDM-24 | 24 | D226B-3CD | 33 | 1500 | Mechanical |
| GNRDM-30 | 30 | TD226B-3CD | 44 | 1500 | Mechanical |
| GNRDM-40 | 40 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-50 | 50 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-64 | 64 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-75 | 75 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-90 | 90 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-100 | 100 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-120 | 120 | TBD226B-6CD5 | 145 | 1500 | Electrical |
Protective function of operation
1) Low oil pressure alarm and shutdown
2) High temperature alarm and shutdown
3) Over speed alarm and shutdown
Standard Configure of marine diesel generator:
1) High Performance Marine Engine
| 6) MCCB, Muffler, Air filter |
2) Brushless ,AVR self-regulated Alternator (IP23)
| 7) 2*12V Heavy duty start batteries |
3) Steel base frame with shock absorber
| 8) Battery cable & Atteched accessories |
4) Standard control box
| 9) Manual books and parts books |
| 5) Sea water cooling heat exchanger | 10) Optional digital monitor
|
