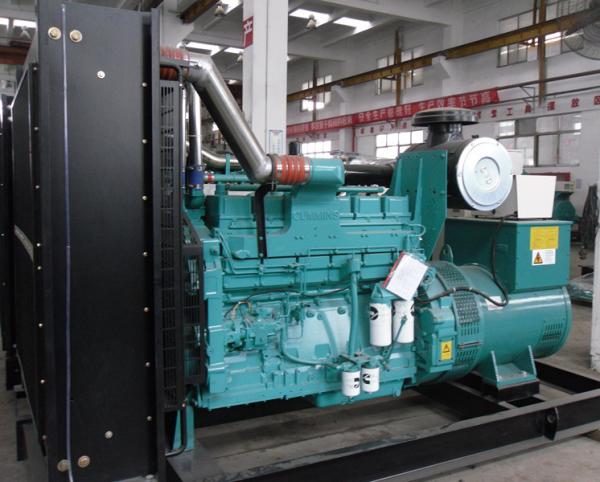

600kw water cooled cummins power diesel 750kva generator
Our company is an approved Cummins OEM partner.So we can provide genuine Cummins genset with very competitive
price and comprehensiv Super Silent Diesel Generator With Ats e
technical support.
Model | GNRC600 |
Normal Power | 600kW/750kVA |
Standby Power | 660kW/825kVA |
Frequency | 50Hz/1500rpm |
Power Factor | 0.8(lagging) |
Voltage | 230V/400V |
Current | 1080/1188A |
Connecting type | Three Phase Four Wire |
Manufacturer | Chongqing Cummins Co., Ltd |
Model | KTA38-G2 |
Type | 4 stroke, |
Cylinder | 12V |
Displacement -L | 37.8L |
Intake Method | Turbocharged & Intercooling |
Bore /Stroke mm | 159/159 |
Compression Ratio | 14.5:1 |
Rated Speed | 1500rpm |
Idling-r/min | 725-775 |
Normal Output Power-kW | 664 |
Standby Output Power-kW(BHP) | 731 |
Piston Speed-m/s(ft/min) | 7.9 |
Friction Power-kW | 86 |
Fuel System Mode | Cummins PT Direct Injection System |
Speed Regulation Mode | ElectricalSpeed |
Engine Weight(dry-typeAir cooling) kg | 3723 |
Inlet Flow-L/s | 850 |
Exhaust Temperature-°C | 541 |
Gas Quantity (m³/min) | 45 |
Exhaust Air Rate (m³/min) | 648 |
Fuel Consumption(g/kw.h)(L/h) | 206 |
Diesel Grade | 0# light diesel |
Oil consumption(g/kw.h) | ≤1 |
Oil Pressure-Low Idle Speed kPa(PSI) | 138 |
Oil Pressure-Rated Speed kPa(PSI) | 345-483 |
Max. Oil Temperature—°C(°F) | 121(250) |
Lubricating Oil Grade | 15W/40 |
Lubricating Oil Capacity (L) | 135 |
Cooling Fluid Capacity(L) | 118 |
Fuel Consumption
Standby Power | Prime Power | Continuous Power |
kW | HP | kW | HP | kW | HP |
731 | 980 | 664 | 890 | ---- | ---- |
Operating Mode | Power | Fuel Consumption |
| HP | kW | Kg/h | L/h |
Standby110% | 980 | 731 | 154.6 | 184 |
Prime100% | 890 | 664 | 140.3 | 167 |
75% | 668 | 498 | 107.5 | 128 |
50% | 445 | 332 | 75.6 | 90 |
25% | 222 | 166 | 44.5 | 53 |
10% | 88.8 | 66.4 | 17.8 | 21.2 |
DigitalControl system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the
water is over temperature, the oil pulls down, over speed, over
load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the
requirement of radiation at ambient temperature 40°C
Standard configuration supply scope:
(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.
Optional accessories:
1. Engine coolant and oil heater, alternator space heater, cooling
for heat exchanger communication interface,
2. Battery charger by main supply
3. Fuel-water seperators
4. ATS & paralleling system
5. Soundproof canopy and moving trailer.
Security and safety:
1) Control panel viewing window in a lockable access door
2) Emergency shut down for low oil pressure and high water
temperature,Emergency stop push button (red) mounted on enclosure
exterior
3) Cooling fan and battery charging alternator fully guarded Fuel
fill and battery can only be reached via lockable access doors
4) Exhaust silencing system totally enclosed for operator safety
Warranty
The goods are under warranty against defects in material and
workmanship for a period of 12 months or 1000 hours ,whichever come
first from the date of delivery to the end user except the
damageable spare parts of genset caused by incorrect man-made
operation, and that the aforementioned warranty for the same taken
is back up by the engine and alternator suppliers.
