factory silent low fuel consumption Cummins diesel generator 120
kva 440Volts 60Hz
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection
systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
Technical data |
Genset Model | GNRC125 |
Prime Power | 100KW/125KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 2250*800*1300 |
Genset weight (kg) | 1250 |
Diesel Engine |
Brand | Cummins |
Model | 6BTAA5.9-G2 |
Number of Cylinders | 6 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 114*135 |
Displacement(L) | 5.9 |
Lubricating Capacity(L) | 16 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 210 g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | Stamford |
Model | UCI274E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control
Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with
the display of frequency table/water temperature/schedule/battery
voltmeter. The genset with low oil pressure, high water
temperature, over speed emergency, stop and other pre-protection. |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed,
temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from
ex-factory date. During the guarantee period, Genor will provide
the free easy-damageable spare parts of diesel engine caused by our
quality of production or raw material. After expiration, Genor
provides cost spare parts maintenance of gensets.

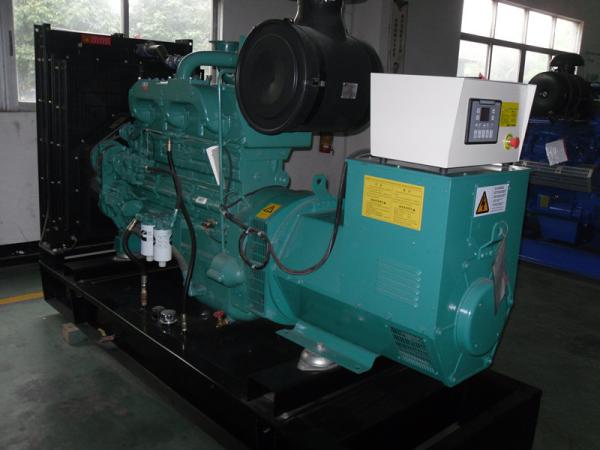

Cummins Open type Genset :
