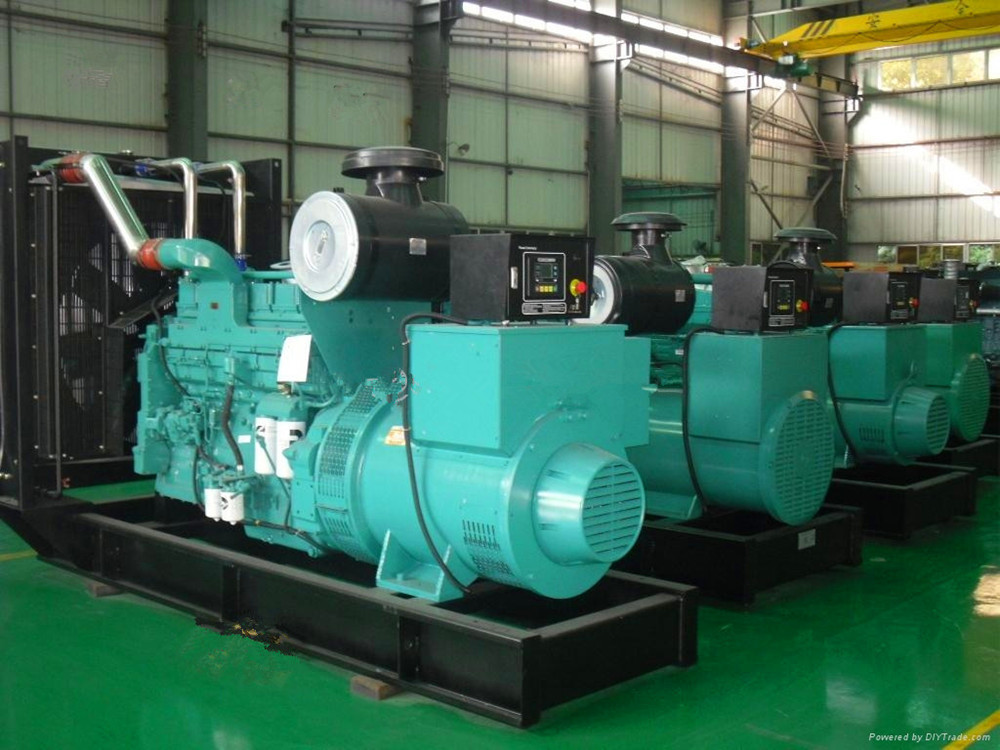

Genset Synchronization Control Panel Cummins diesel generator
500kva power copper busbar
1. Genuine Cummins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection
systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
specification of Genset 500kva
| 1.Main technical data of gensets |
| 1.1 | Model | GNRC500 |
| 1.2 | Prime power | 500kva |
| 1.3 | Prime voltage | 254V/440V |
| 1.4 | Speed | 1800 rpm |
| 1.5 | Weight | 3950kg |
| 1.6 | Overall dimension | 3150×1000×2150mm (just for reference) |
| 2.Main technical data of engine |
| Cummins engine, 4 stroke. DC start. Come with sea water pump,
heater exchanger and expansion water tank, open-cycle cooling. |
| 2.1 | Brand | |
| 2.2 | Model | QSZ13-G3 |
| 2.3 | Prime power | 463KW |
| 2.4 | Governor type | Electronic |
| 2.5 | Configuration | 4 cycle , 6 cylinder in line |
| 2.6 | Cooling method | By heater exchanger |
| 2.7 | Bore/Stroke | 159×159 mm |
| 2.8 | Displacement | 19.0L |
| 2.9 | Starting method | Electric |
| 2.10 | Fuel consumption | 203g/kw.h |
| 3. Main technical data of alternator |
| Alternator is selected the new type brushless alternator designed
by US Marathon Electric, which has a unique design, advanced
structure, small size, light weight, excellent performance,
reliable running and easy-to-use operation. |
| 3.1 | Brand | China Stamford |
| 3.3 | Prime power | 500kva |
| 3.4 | Configuration | Brushless , self-exciting |
| 3.5 | Prime voltage | 254V/440V |
| 3.6 | Frequency | 60 HZ |
| 3.7 | Power factor | 0.8(lagging) |
| 3.8 | Phase/wire | 3 phase 4 wires |
| 3.9 | Isolation | H |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed,
temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc
