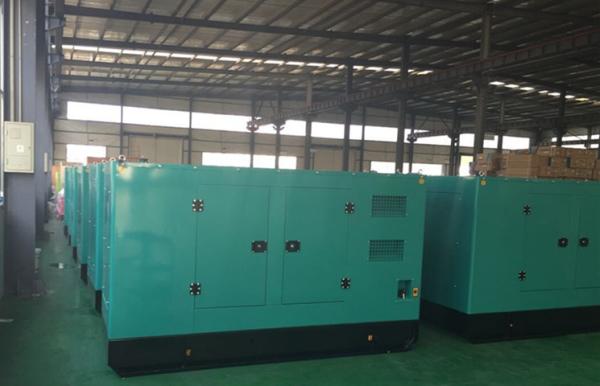

Electricity Power 100kva Cummins diesel generator 80kw Genset 6bt5.9-g2 engine noise proof

Control system:

a) Automatic alarm system: the unit has the acousto-optics alarm system and

arrestor for any situation as the start defeat, the water is over temperature, the oil

pulls down, over speed, over load and over current

b) Operation display:

i) Unit voltage, tri-phase load current and frequency display

ii) Water temperature, oil pressure display

iii) Fuel level, fuel temperature display

iv) Audible and visual alarm lamps and buzzers

2) Supply standard collocation:

a) Diesel engine with all accessories, 3 filter, electric systems

b) Alternator

c) Steel structure

d) Fan and water tank cooling system

e) Flange connector

f) 12 / 24V starting motor and charge engine

g) Air cleaner, fuel cleaner, oil cleaner

h) On-board control panel

i) MCCB air conservation switch

j) 12 / 24V starting accumulator and battery line

k) Set shock absorber

l) High-efficient silencer

1) Main Specification

a,3-Phase, 50Hz@1500RPM, 380/220V

b,Composed Cummins diesel engine and Stamford or Leroy Somer alternator

c,12V/24V DC start motor and storage battery

d,Brushless, Self-excited, IP23, insulation class H alternator

e, 40°C radiator as standard, 50°C is optional

f,Key start panel control system as standard, digital auto-start panel is optional

g,10-hour operation base tank

h,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

2) Data of generador diesel 100 kva

3) Engine Specificatio

4) Alternator Specification

5) Control System

Our standard genset controller provides functions,

a),Start/Stop controller

b),Ampere meter

c),Voltmeter and selector switch

d),Frequency meter/ Water temperature gauge/Oil pressure gauge/Hour counter/Battery voltage meter

e),Emergency stop pushbutton

f),Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail

g),Protection System: Over speed, High Engine Temperature, Low Oil Pressure,Emergency Stop, and the other protection function pre-setting

h),AMF

i),ATS.

Genor Power Equipment Co., Ltd is a Chinese factory producing engine driven welder ,diesel generator set, gas generator set, Marine generator ,silent generators, trailer generators, lighting tower generators, industrial ceiling fan and other industrial equipments.

The welder is from 160A to 1000Amps . The generator power range is from 5KVA to 3000KVA. We also provide relevant accessories processing , and customized generator producing (OEM)service.

Our factory was set up in 2000 and Located in Shenzhen,Guangdong Province,the most advanced area of manufacturing in China.
With the development , we have built the other factory in Shangdong province and have standard assemble workshop, spray paint workshop, sheet-metal workshop and loading testing workshop. we also have advanced equipment such as CNC punching machine, Bending machine, Laser cutting machine, Hydraulic shear machine, Digital Machine Tool, and Electronic Testing system.

Now, We have 3 Chief engineers, 5 Senior Mechanical Engineers, 5 Senior Electrical Engineers and more than 50 technic employees.

Our factory has obtained ISO9001: 2008 certificate, ISO9001:2004 environment certificate ,CE and CCC certificate.
