Kubota 10kw Generator With Stamford Alternator
1.OEM Manufacturer, Stamford Alternator
2.Low Fuel Consumption,100 % Power Output
3.CE Approved,1000 Hours Warranty

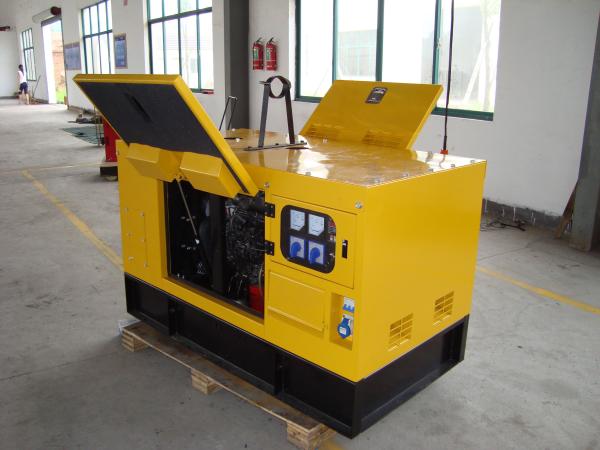

10 KW 12.5 KVA Silent Kubota Diesel Generator CE Approved
Specifications:
Generator set
Genset Model | GNRK10 |
Prime Power | 10/ 12.5(KW / KVA) |
Standby Power | 11 / 14(KW / KVA) |
Frequency (HZ) | 50 |
Voltage (V) | 127v/220v, 220v/380v,230v/400v, etc. |
Power Factor | 0.8 |
Phase | 3 |
Kubota Engine
Engine Model | V1505-E2BG |
Number of Cylinders | 4 |
Cylinder arrangement | Vertical in line |
Cycle | 4 Stroke |
Aspiration | Naturally Aspiration |
Bore x Stroke | 78 X 78.4 (mm x mm) |
Displacement (L) | 1.498 |
Compression ratio | 22 : 1 |
Prime Power/Speed | 13.7 / 1500(KW / rpm) |
Standby Power/Speed | 15.4/ 1500(KW / rpm) |
Speed Governor | Electrical |
Cooling System | Water-cooled, 40°C Radiator |
lubrication capacity | 22(L) |
Coolant capacity | 6.0(L) |
Original Stamford Alternator:
Alternator Brand | Original Stamford |
Alternator Model | PI044F |
Prime Power | 10KW / 12.5KVA |
Rated Current (A) | 32.8,19.0,18.0,etc. |
Rated Voltage | 127V/220V,220V/380V, 230V/400V,etc |
Frequency | 50HZ 1500rpm |
Power Factor(COS) | 0.8 |
Phase / Connection | 3-phase 4-wire , Y type connection |
Excitation | Brushless, Self-excited |
Insulation Class: H . Protection Grade : IP23. |
Voltage Regulation | AVR |
options: Leroy Somer, Marathon, Engga
Soundproof/Silent Box:
1 Cold steel materials of the canopy. & Best powder paint.
2 Stainless steel locks and hinges.
3 Fireproof, waterproof and dustproof.
4 Good ventilation system and anti-heat radiation struction.
5 Effective anti-vibration devices to ensure the generator set run
steadily.
6 High quality soundproof materials could efficiently reduce noise.
(lower than 68 dB at 7 meters away)
7 Emergency stop button mounted outside.
8 Side lockable door easy for maintenance and installation.
9 Lube oil and cooling water drains piped to exterior of the
canopy.
10 Access to all weather conditions.
Our Advantages:
1. Solve your technical problems in 24 hours and provide
international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and
raining
4. Four hours testing before out factory
5. ISO9001 and CE certification
