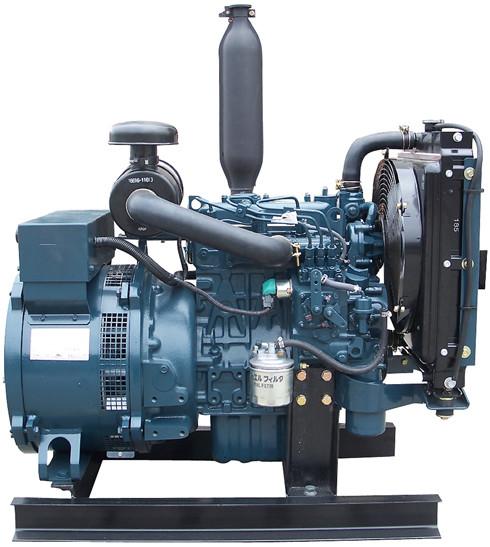

6 kw kubota engine silent diesel generator 7.5 kva
Kubota Diesel generator widely used in the area of industry,
railway and construction. The engine is imported from Japan. The
global service net of Superwatt and Kubota can provide our
customers with reliable and guaranteed service.
3-PH, 50Hz@1500RPM, 400/230V(Also Can BeMade According To Customers’ Special Requirements)
1. Composed of Kubota diesel engine and Stamford or Leroy Somer
alternator
2.12V DC start motor and storage battery Brushless, Self-excited,
IP23, insulation class H alternator
3. 40°C radiator as standard, 50°C is optional
4.Key start panel control system as standard, digital auto-start
panel is optional
5.8-hour operation base tank
6.Optional open type or silent type
7.All generator sets are gone through rigorous testing before being
released to the market place, including 50% load, 75% load, 100%
load , 110% load and all protection function (overspeed stop, high
water temperature, low oil pressure, battery charging fail,
emergency stop)
Kubota Generator set
Prime Power | 6KW/7.5KVA | Standby Power | 6.6KW/8.25KVA |
Rated Speed | 1500RPM | Output Frequency | 50HZ |
Phase | 3 | Rated Voltage | 400V |
Engine Model | D905-E2BG1-SAE-2 | Alternator Model | PI044D |
Fuel Consumption of 100% load | 2.2L/H | Fuel Consumption of 75% load | 1.8L/H |
Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
Dimension (open type) | 920×600×820(mm) | Weight (open type) | 280kg |
Dimension(silent type) | 1100×650×890(mm) | Weight (silent type) | 360kg |
Kubota Diesel Engine
Engine Model | D905-E2BG1-SAE-2 |
Number of Cylinder | 3 |
Cylinder arrangement | Vertical in-line |
Cycle | Four Stroke |
Aspiration | Natural Aspiration |
Bore×Stroke (mm×mm) | 72×73.6 |
Displacement | 0.898L |
Compression Ratio | 23.0:1 |
Prime Power/Speed(KW/rpm) | 6.73 /1500 |
Standby Power/Speed(KW/rpm) | 7.4/1500 |
Speed Governor | Electric |
Cooling System | Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
Speed Stability (%) | ≤5% |
Total Lubrication System Capacity (L) | 2.2 |
Coolant Capacity(without radiator) (L) | 3.7 |
Fuel Consumption at 100% Load(L/Hr) | 2.2 (at 1500RPM) |
Starter Motor | DC12V |
Alternator | AC12V |
Stamford Alternator
Alternator Model | PI 044D |
Alternator Brand | Stamford |
Exciter Type | Brushless, Self-excited |
Rated Output | 6kw/7.5kva |
Rated Speed | 1500RPM |
Rated Frequency | 50HZ |
Phase | Three |
Rated Voltage | 230V/400V (Available with customer requirements) |
Power Factor | 0.8 |
Voltage Adjust Range | ≥5% |
Voltage Regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
![359920439_158[1].jpg](https://img.himfr.com/nimg/dd/4d/c660601ad2777ac0870a9b32152a.jpg)
Harsen GU601A Genset Controller
Description:
The GU601A is an Automatic Start Control Module designed to
automatically start and stop the Generator.
The module also monitors and protects the engine, indicating
operational status, fault conditions and metering on the front
panel LCD and LED’s.
1.Configuration of parameters by front panel push buttons or by PC
via mini USB interface with license free software.
2.Configurable fuel output energise to stop energise to run.
3.3 Configurable inputs.
4.3 Configurable outputs.
5.2 Analogue inputs configurable for different senders for oil
pressure and engine temperature.
6.True RMS measuring.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from
ex-factory date.During the guarantee period, Genor will provide the free
easy-damageable spare parts of diesel engine caused by our quality
of production or raw material. After expiration, Genor provides
cost spare parts maintenance of gensets.
