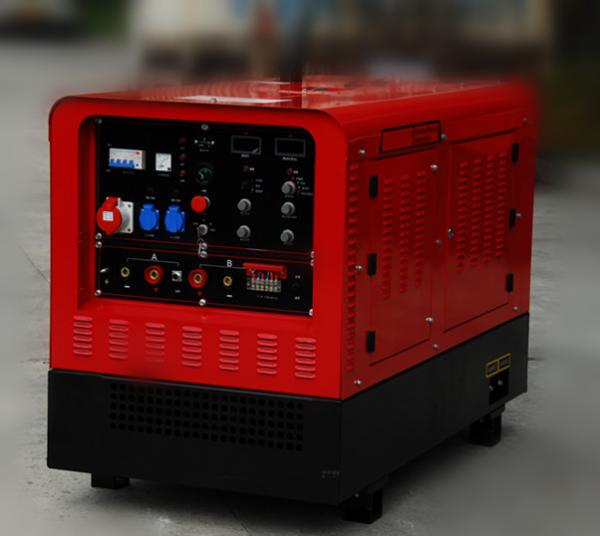

Gas Tungsten Arc Diesel Welder Generator 400A perkins engine stick
flux - cored welding 19kw
The diesel welder generator adopt advanced inverter soft switch
technology, PWM control technology, and negative feedback control
technology , enjoys excellent dynamic quality and welding
performance within full voltage/current regulation range.
The Perkins engine 400A diesel welder generator is equipped with
heavy duty diesel engine driven welding machines with MMA/TIG/FCAW
function, and Strong auxiliary power:20 KW output for three-phase,
7KW output for single-phase.
Engine Features:
1. Genuine Perkins diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct
injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged
with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet
type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Advantage:
1. Electric Starter ensures easy starting
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc
Gouging and Stud Welding
6. Adopts advanced inverter soft switch technology, PWM control
technology, and negative feedback control technology,enjoys
excellent dynamic quality and welding performance within full
voltage/current regulation range.
| Welding Processes | MMA | TIG | FCAW |
| Open Circuit Voltage (V) | 75 | 75 | 75 |
| Current Range (A) | 30-400 | 30-400 | 30-400 |
| Welding Current (A) | 387 | 430 | 500 | 387 | 430 | 500 | 387 | 430 | 500 |
| Welding Voltage (V) | 35.5 | 37.2 | 40 | 25.5 | 27.2 | 30 | 33.3 | 35.5 | 39 |
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic |
| Generator output |
| Power | 20Kw |
| Excitation Type | AVR Brushless Excitation |
| Frequency | 50Hz or 60Hz |
| Phase | Three Phase | Single Phase |
| Output Voltage/Power | AC 400V/20Kw | AC 230V/6Kw |
| Engine |
| Engine type | 4 stroke , 4cylinder , direct injection , perkins diesel engine |
| Fuel | Diesel |
| Rated Power | 26Kw |
| Rated Speed | 1500 RPM |
| Low Temperature | Pre-heated Start |
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage |
| Fuel Capacity | 60L |
| Cooling Method | Water-cooled |
| Fuel Consumption | 5.6L/hr |
| Complete appliance |
| Weight | 710kg |
| Dimension(mm) | 1500×800×1100 |
| Protection Class | IP23
|
