20kw Standby Generator With Perkins 404D-22TG Engine
1. Perkins diesel engine 1106C-E66TAG2 1106C-E66TAG3 1106C-E66TAG4
2. Stamford Brushless, Self-Exciting alternator UCI274C
3. Smartgen auto LED control panel with ATS

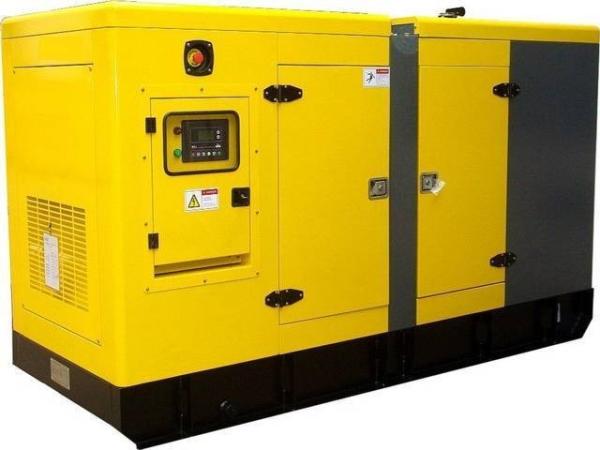

Standby In-Line 4 Cylinders Perkins Diesel Generator Genset 20kw
Specifications:
MODEL | GNRP25 |
PRIME POWER (KVA/KW) | 25/20 |
STANDBY POWER(KVA/KW) | 28/22 |
Rated voltage(V) | 400/230 |
Rated speed(rpm) | 1500 |
Rated frequency(Hz) | 50 |
Power factor | 0.8 |
Ambient temperature(°C) | 40 |
Altitude(m) | 1000 |
Connection type | 3 phase 4 wires |
ENGINE MANUFACTURER | PERKINS |
Model | 404D-22TG |
Rated Power(kW) | 27.4 |
No. of cylinders & configuration | In-Line 4 cylinders |
Method of operation | 4-stroke |
Speed regulation | Mechanically governor |
Starting system | DC 12V Electronic start |
Cooling method | Closed-circuit cooling system |
Total displacement(L) | 2.216 |
Compression ratio | 23.3:1 |
Bore×Stroke(mm) | 84×100 |
100% Load fuel consumption(L/h) | ≤7.1 |
ALTERNATOR MANUFACTURER | STAMFORD |
Number of Phase | 3 |
Connection Type | 3Phase and 4Wires |
Number of Bearing | 1 |
Power Factor | 0.8 |
Protection Grade | IP23 |
Terminal | 12 |
Winding/ Pitch | 100% Copper 2/3 Pitch |
Cooling Fan | Cast alloy aluminum |
Exciter Type | Brushless, Self-Exciting |
Insulation Class, Temperature Rise | H/H |
Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
Voltage Regulation, Steady State | ≤±1% |
Sustained Short-Circuit Current | 300%(3 in):10s |
CONTROL SYSTEM | DSE SERIES |
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation
under all condition
3. Optional accessories available for easy paralleling with mains
or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
