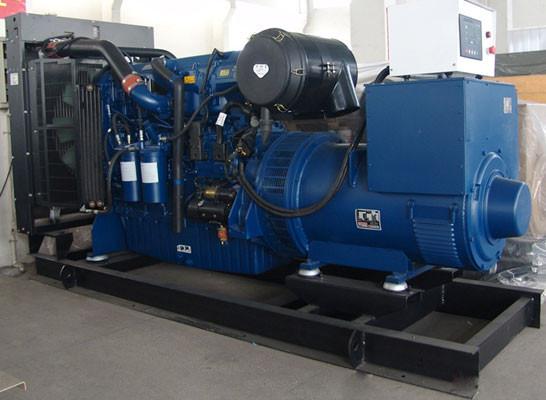

400KW Perkins Diesel Generator Stamford Brushless 240V 500KVA
1. Perkins Industrial Diesel Engine:2506C-E15TAG2
2. Original Stamford Brushless Alternator
3. Deepsea Control Panel
4. Electronic Governor
5. 220V/380V, 3 Phase 4wire,50Hz
Specifications:
Set Model | GNRR500 |
Prime at 50HZ, 40°C ambient | 400KW 500KVA |
Standby at 50HZ, 40°C ambient | 440KW 550KVA |
Rated Gen-set output | 230/400V 50Hz |
Rated Relative humidity | ≤ 60 % |
Dimension (L×W×H) | 4100×1350×2050mm |
Weight | 3700kg |
Fuel consumption 100% prime load | 106 l/hr |
Total heat radiated to ambient | / |
Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high
strength steel basic frame, anti vibration instrument between the
engine and basic frame, cooling fan have protecting cap, control
cabinet and circuit breaker installed on Gen-set |
Control system (Optional) | Basic control panel or Advanced control panel with automatically
start-up function and other function |
2506C-E15TAG2 specification:
Engine Brand | UK |
Engine Model | 2506C-E15TAG2 |
Governor/Class | Electronic |
Cylinder NO. | 6 |
Engine build | Vertical in-line |
Fuel spray pattern | direct injection |
Aspiration | turbocharged, air to air charge cooling |
Cooling mode | Radiator cooled (enclose water) |
Bore and stroke | 135x 167 mm |
Compression ratio | 16.0:1 |
Displacement | 15.2 litres |
Engine Prime Power at 1500rpm | 435KWm |
Engine Standby Power at 1500rpm | 478KWm |
Start-up mode | 24V, electric |
Battery capacity | 2 x 12V 128 Ah |
Starting/Min temperature | / |
Lubricating oil consumption | Lubricating oil consumption less than 10% Fuel consumption |
Lubrication oil capacity | 62 litres |
Coolant capacity – radiator and engine (40°C) | 58 litres |
Exhaust temp – full load prime | 514°C |
Exhaust gas flow – full load prime | 81m³/min |
Exhaust gas back pressure max | 3,0 kPa |
Air flow – radiator (40°C ambient) | / |
Pusher fan head (duct allowance) 40°C | / |
Air intake – engine– full load prime | 30.5m³/min |
Standard Air intake temp | 25°C |
Fuel type | #0 Diesel (Natural temperature) |
Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
Engine derating – altitude | / |
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford,
Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial
alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to
terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of
VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and
vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation
under all condition
3. Optional accessories available for easy paralleling with mains
or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
