Silence enclosure 500kw Cummins diesel generator kta19 - g8 engine
625kva genset power
Overall description: - Cummins Engine and Stamford Alternator
- Water cooled radiator, the fans driven by belt, with safety shield.
- 24 V Battery charging Alternator
- Alternator:Single bearing Alternator,IP23 Grading Protection, H Insulation degree
- Shock absorber
- Dry air filter,Fuel filter,Oil filter
- Power output circuit breaker
- Deepsea control panel(LCD display)
- 12 V battery and battery connection cables
- Exhaust pipe,Corrugated shock tube,flange,Muffler set
- Maintenance manuals
- Lubrication System
|
|
The products that we provide are all new, each unit all get through
the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time
for all our products. We take the full responsibility only in the
fault that created by the quality, the wearing-parts, daily
consumables and human error of operating & maintenance are not
included in.
- GB/T19001-2008
- SO9001:2008 Quality Control System
The main parameters of the generator set |
Technical data |
Genset Model | GNRC500 |
Prime Power | 500KW/625KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 3500*1500*2000 |
Genset weight (kg) | 4200 |
Diesel Engine |
Brand | |
Model | KTA19-G8 |
Number of Cylinders | 6 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 159*159 |
Displacement(L) | 19 |
Lubricating Capacity(L) | 50 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 206g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | Stamford |
Model | HCI444E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) Diesel Engine; (2)Stamford Alternator; (3) Control Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with
the display of frequency table/water temperature/schedule/battery
voltmeter. The genset with low oil pressure, high water
temperature, over speed emergency, stop and other pre-protection. |
Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown

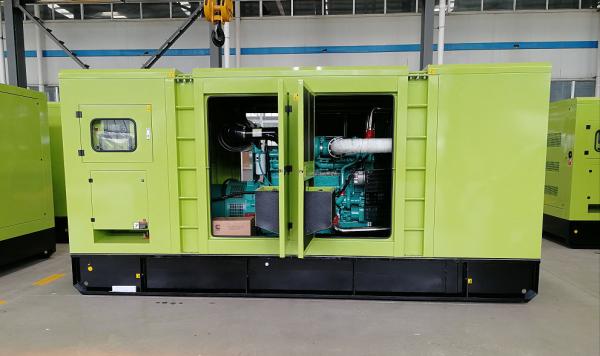

Soundproof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the
generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run
steadily
6)Super silent materials inside to ensure the noise lower than 70
dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
