500kva Cummins Diesel Generator Stamford Direct Injection Kta19-G4
1.Chongqing Cummins Diesel Engine:KTA19-G4
2.Stamford AC Brushless Alternator:HCI544C
3.Deepsea,Smartgen Control Panel
4.Electronic Governor
Water Cooled Cummins Diesel Generator 500 kva Stamford Brushless
Alternator
Type | GNRC500 |
Frequency(50/60HZ) | 400KW/500KVA |
Overall description: - Cummins Engine and Stamford Alternator
- Water cooled radiator, the fans driven by belt, with safety shield.
- 24 V Battery charging Alternator
- Alternator:Single bearing Alternator,IP23 Grading Protection, H
Insulation degree
- Shock absorber
- Dry air filter,Fuel filter,Oil filter
- Power output circuit breaker
- Harsen control panel(LCD display)
- 12 V battery and battery connection cables
- Exhaust pipe,Corrugated shock tube,flange,Muffler set
- Maintenance manuals
- Lubrication System
|
|
The products that we provide are all new, each unit all get through
the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time
for all our products. We take the full responsibility only in the
fault that created by the quality, the wearing-parts, daily
consumables and human error of operating & maintenance are not
included in.
- GB/T19001-2008
- SO9001:2008 Quality Control System
The main parameters of the generator set |
MAIN SPECIFICATIONS OF GENERATOR SETS |
Diesel Generator Set |
|
GENSET MODEL NOS. | GNRC |
Manufacturer | Genor |
Rated speed / frequency | 1500RPM/50Hz |
Continuous outputKW/KVA | 400/500 |
Standby outputKW/KVA | 440/550 |
Voltage, Phase and wire | 400V/230V, 3 Phase and 4 Wires |
Rated power factor | 0.8lagging |
Dimension(L*W*H) (mm) | 3670*1220*1900 |
Weight(kg) | 4800 |
Rating Definitions (Operation at Altitude ≤1000m, Ambient
temperature ≤ 40) |
These ratings are applicable for supplying continuous electrical
power (at variable load) in lieu of commercially purchased power.
There is no limitation to the annual hours of operation and this
model can supply 10% overload power for 1 hour in 12 hours. |
Diesel Engine | Cummins |
DIESEL ENGINE MODEL | KTA19-G4(Cummins) |
Engine Characters | Water-cooled, 4 cylinders in line, 4-cycle, direct injection |
The engine outputKW | 448 |
Aspiration | Turbocharged & Aftercooled |
Bore(mm)×Stroke (mm) | 159*159 |
Compression ration | 14.5:1 |
Fuel consumption(L/H) | 101(100% load) |
Displacement(Liters) | 19 |
Exhaust air flow(m3/min) | 588 |
Compress air flow(m3/min) | 34.7 |
Exhaust gas flow(m3/min) | 96.2 |
Exhaust highest temperature | 557 |
Lub-oil pan capacity(L) | 50 |
Cooling water capacity(L) | 91 |
Voltage for start(V) | 24 |
Instrument for adjusting speed | Electronically |
Noise level(A) | ≤85dBA(open) |
ALTERNATOR |
|
ALTERNATOR MODEL | HCI544C |
Excitation | Brushless |
Insulation class | H |
Protection class | IP22 |
Efficiency | 94.10% |
Voltage adjust range | ±1% with 4% engine governing |
Steady state voltage regulation | ≤±1% |
Voltage Control | AVR |
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the
start defeat, the water is over temperature, the oil pulls down,
over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe,
Battery and connecting wires,
Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for
heat exchanger, Battery charger
by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling
system, and Moving Trailer.

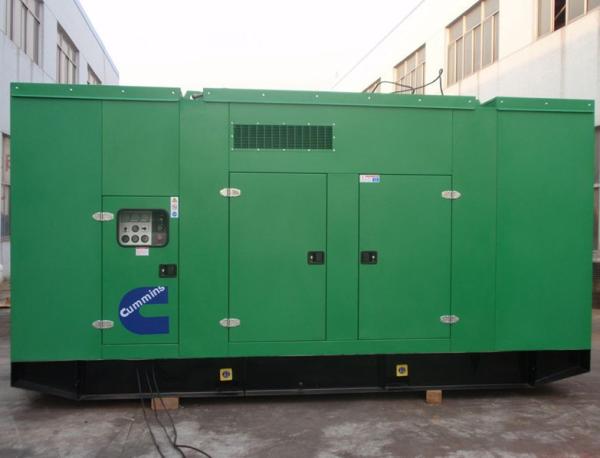

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. 1m<80 dB / 7m<70dB
