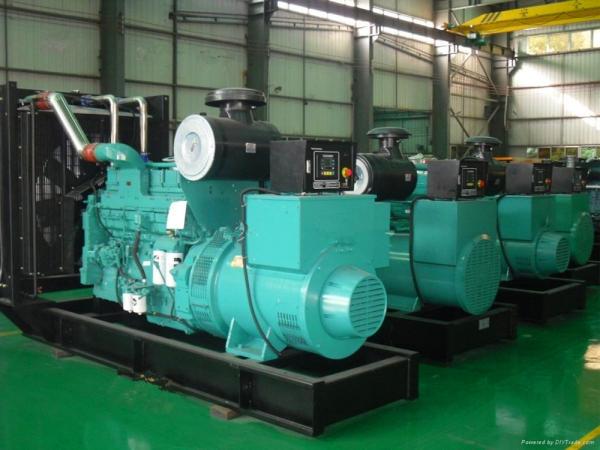

UN 6ZTAA13 - G2 Engine 450kva cummins diesel generator digital
controller ATS
1. Genuine industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection
systems
5. Digital auto-start panel
Description of 360kw/450kva diesel genset:
| Type of generator set | Open type |
| Model | GNRC450 |
| Prime power | 450kva |
| Standby power | 495kva |
| Output voltage(adjustable) | 220/380 |
| Rated speed (r/min.) | 1500 |
| Dimension(L*W*H) | 3650*1800*2100mm |
| Net weight | 4550 KG |
Technical parameters of 360kw/450kva diesel genset:
| Power factor | COSΦ=0.8(lagging) |
| Phase/wires | 3 phase 4 wires |
| Start mode | Electric |
| Fuel consumption: | 110L/h. |
| Rated current | 855Amp |
| Protection | Low oil-pressure, High water temperature, Over-speed,
Over-current., High Coolant temperature, Over load,
Over/under/unbalance voltage. |
Technical parameters of Engine:
| Brand | Cummins | Frequency | 50Hz |
| Model | 6ZTAA13 - G2 | Standby power: | 450KW |
| Start mode | DC24V electric start | Original: | Sino-U.S |
| Cylinders | 6 | Cylinders Layout | Line |
| Fuel | 0# light diesel | Displacement | 18.9L |
| Inter-Cooling | water inter-cooling | Speed-Governing | Electric |
| Overload | 110% | Steady Speed Droop | ≤1% |
Technical parameters of Alternator
| Brand | Stanford | Frequency | 60 Hz |
| Model | HJI450 | Power | 450kw(562kva) |
| Original | Made in China | Rated voltage | 220/380 V |
| Protection | IP21 | Insulation | H |
| Frequency fluctuation | ≤±0.5 % | Frequency regulation | ≤±0.5 %(stable) |
| Voltage distortion | 4% | Voltage control | AVR |
.
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid,
Common steel frame, circuit breaker, damper, exhaust silencer,
flexible pipe, battery and connecting wires, Standard tools kit,
operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator
space heater, cooling for heat exchanger, communication interface,
battery charger by main supply, daily fuel tank, ATS and
paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from
ex-factory date. During the guarantee period, Genor will provide
the free easy-damageable spare parts of diesel engine caused by our
quality of production or raw material. After expiration, Genor
provides cost spare parts maintenance of gensets.
