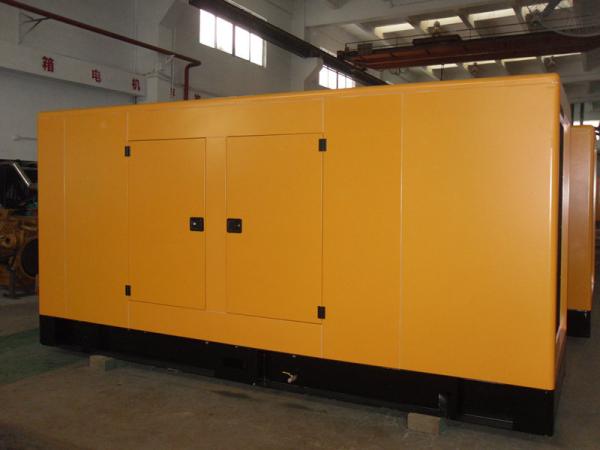

50hz 1500rpm Cummins Diesel Generator Kta19-G3 450kva
1.Chongqing Cummins Diesel Engine:KTA19-G3
2.Stamford ac brushless alternator:HCI544D
3.Deep Sea / Smartgen (Digital and intelligent) controller
50Hz 1500rpm Cummins Diesel Generator ,KTA19-G3 450 kva Generator
Specifications:
Cummins is one of world top famous engines and widely acceptable
all over the world. Cummins Inc., a global power leader, is a
corporation of complementary business units that design,
manufacture, distribute and service engines and related
technologies, including fuel systems, controls, air handling,
filtration, emission solutions and electrical power generating
systems. Headquartered in Columbus, Indiana, (USA) Cummins serves
customers in approximately 190 countries and territories through a
network of more than 600 company-owned and independent distributor
locations and approximately 5,200 dealer locations.
specification of Genset 500kva
1.Main technical data of gensets |
1.1 | Model | GNRC450 |
1.2 | Prime power | 450 kva |
1.3 | Prime voltage | 220v/380v |
1.4 | Speed | 1800 rpm |
1.5 | Weight | 3950kg |
1.6 | Overall dimension | 3150×1000×2150mm (just for reference) |
2.Main technical data of engine |
Cummins engine, 4 stroke. DC start. Come with sea water pump,
heater exchanger and expansion water tank, open-cycle cooling. |
2.1 | Brand | CUMMINS |
2.2 | Model | KTA19-G3 |
2.3 | Prime power | 463KW |
2.4 | Governor type | Electronic |
2.5 | Configuration | 4 cycle , 6 cylinder in line |
2.6 | Cooling method | By heater exchanger |
2.7 | Bore/Stroke | 159×159 mm |
2.8 | Displacement | 19.0L |
2.9 | Starting method | Electric |
2.10 | Fuel consumption | 203g/kw.h |
3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed
by US Marathon Electric, which has a unique design, advanced
structure, small size, light weight, excellent performance,
reliable running and easy-to-use operation. |
3.1 | Brand | Stamford |
3.2 | Model | HCI544C |
3.3 | Prime power | 450 kva |
3.4 | Configuration | Brushless , self-exciting |
3.5 | Prime voltage | 220v/380v |
3.6 | Frequency | 50 HZ |
3.7 | Power factor | 0.8(lagging) |
3.8 | Phase/wire | 3 phase 4 wires |
3.9 | Isolation | H |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed,
temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from
ex-factory date. During the guarantee period, Genor will provide
the free easy-damageable spare parts of diesel engine caused by our
quality of production or raw material. After expiration, Genor
provides cost spare parts maintenance of gensets.
