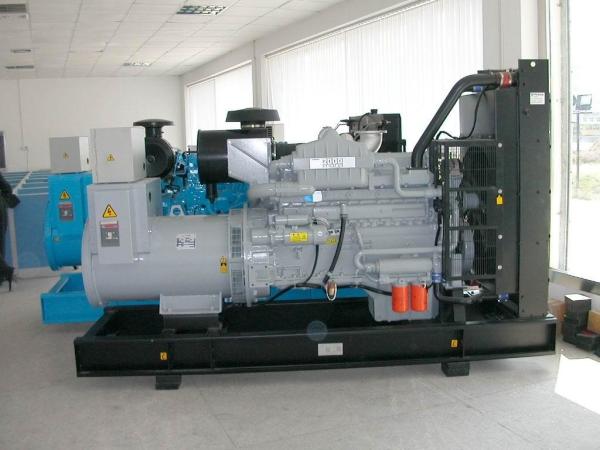

standby power perkins diesel generator 220 kva
Product Description:
1. Inbuilt-muffler,compact arrangement and well performance;
2. With high anti-corrosion function,the hinge meterial is
duralumin which has been dealt with positive;the bolts and screws
are both coped with anti-rust treatment;
3. strechable sealed edges;
4. The design enables maintainence much more comfortable
5. UK engine coupled with Stamford/Leroy Somer/Faraday/Cedex
alternator
6. Low fuel consumption and noise
7. Emission meets the German TALuft standard
8. ATS Diesel Generator Set
9. CE Certificate
Technical parameters of Diesel Gerador 200kva :
Technical data |
Genset Model | GNRP200 |
Prime Power | 160KW/200KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 3000*1000*1700 |
Genset weight (kg) | 2100 |
Diesel Engine |
Brand | UK Imported |
Model | 1306C-E87TAG3 |
Number of Cylinders | 6 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 116*136 |
Displacement(L) | 8.7 |
Lubricating Capacity(L) | 26.4 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 201g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | Stamford |
Model | HCI444E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP22 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control
Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with
the display of frequency table/water temperature/schedule/battery
voltmeter. The genset with low oil pressure, high water
temperature, over speed emergency, stop and other pre-protection. |
For better meet user's demands, the alternator is selectable, we
haveStamford, Marathon, Engga and other famous brands.
Soundproof/Silent Box:
1. Excellent ventilation
2.Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel:English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 2 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation
under all condition
3. Optional accessories available for easy paralleling with mains
or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
