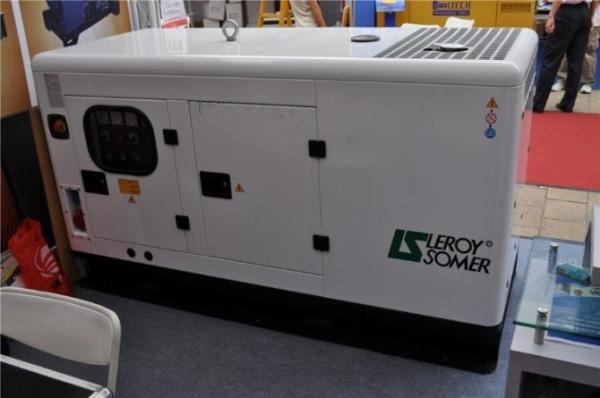

50Hz silent perkins engine diesel generator 15 kva
generator 15kva specification:
| Set Model | GNR15 |
| Prime at 50HZ, 40°C ambient | 12KW 15KVA |
| Standby at 50HZ, 40°C ambient | 13KW 16.5KVA |
| Rated Gen-set output | 230/400V 50Hz |
| Rated Relative humidity | ≤ 60 % |
| Dimension (L×W×H) | 1500×650×1050mm |
| Weight | 450kg |
| Fuel consumption 100% prime load | 5,4 l/hr |
| Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high
strength steel basic frame, anti vibration instrument between the
engine and basic frame, cooling fan have protecting cap, control
cabinet and circuit breaker installed on Gen-set |
| Control system (Optional) | Basic control panel or Advanced control panel with automatically
start-up function and other function |
engine 404D-22G specification:
| Engine Brand | UK Imported |
| Engine Model | 404D-22G |
| Governor/Class | Mechanical |
| Cylinder NO. | 4 |
| Engine build | Vertical in-line |
| Fuel spray pattern | Indirect injection |
| Aspiration | Naturally |
| Cooling mode | Radiator cooled (enclose water) |
| Bore and stroke | 84×100mm |
| Compression ratio | 23·3 : 1 |
| Displacement | 2.216L |
| Engine Prime Power at 1500rpm | 18.4KWm |
| Engine Standby Power at 1500rpm | 20.3KWm |
| Start-up mode | 12V, electric |
| Starting/Min temperature | / |
| Lubricating oil consumption | Lubricating oil consumption less than 10% Fuel consumption |
| Lubrication oil capacity | 10,6 litres |
| Coolant capacity – radiator and engine (40°C) | 6,98 litres |
| Exhaust temp – full load prime | 445°C |
| Exhaust gas flow – full load prime | 3,64m³/min |
| Exhaust gas back pressure max | 10,2 kPa |
| Air flow – radiator (40°C ambient) | / |
| Air intake – engine– full load prime | 1,45m³/min |
| Standard Air intake temp | 25°C |
| Fuel type | #0 Diesel (Natural temperature) |
| Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| Engine derating – altitude | Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
The specification of alternator:
Brand | Stamford,marathon, leroy somer.ect |
Regulator | AVR automatic voltage regulating |
Excite type | pret or shunt |
Connecting type | 3PH star, 3PH-DELTA |
Steady frequency change | 0-5% |
No load voltage | 95%-105 |
Steady voltage | ±1 |
Insulation degree | H degree |
Exclosure degree | IP23 |
Control Panel:
1. Key switch (manual type) control panel
Shock resist is fitted between control panel and generator set.
Loose sheet is also fitted.The equipments of control panel are Meters with
Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure
gauge,Hour meter.
2. Control parts
Start/stop key switch, start button, emergency stop button, voltage
regulation
resistance, speed regulation resistance. Voltage phase switch
,Electric current phase selecting switch.
3. Protection setting for engine
For emergency shut down, overfeed, high water temperature, low oil
pressure. ATS switch is optional components when some accidents
appear, The digital Protector can shut dow
Control system:
1) Automatic alarm system: the unit has the acousto-optics alarm
system and
arrestor for any situation asthe start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current.
2) Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
![372643995_007[1].jpg](https://img.himfr.com/nimg/b9/4a/182ebc6c1d1c930551ae951b9c18.jpg)
Standard information:
1).Type:open/soundproof/weatherproof/trailer/container type
2). Rated voltage:220/380V,230/400V,240/415V,120/240V
3). Power factor:0.8
4). output type:AC three phase
5). Motor:brushless
6). Starting method:12/24DC electric starting
7). Governor system: electrical or mechanical governor
8). Short circuit protection: MCCB air switch
