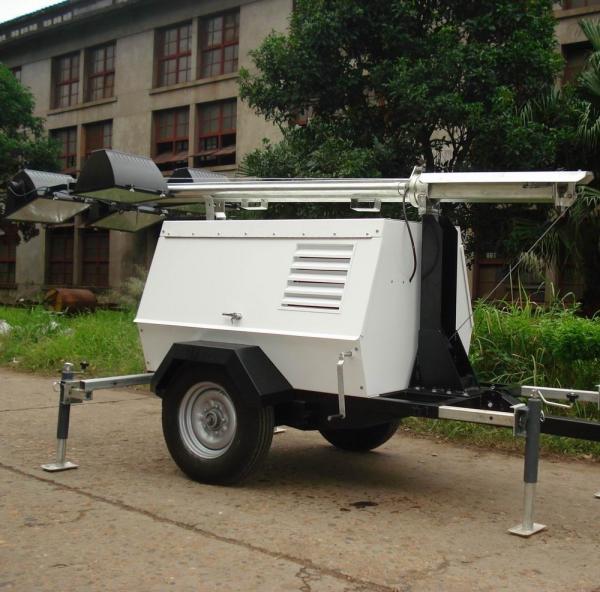

6kw - 8kw Diesel Light Tower Generator , Mobile Light Tower 1000Wx6 Lamps With Trailer

Quick Detail:

1. Mobile light tower 1000Wx6 lamps with trailer

2. Mining, construction and tunnel applications, defense operations, airports and wharfs, disaster relief and emergency applications, public areas.

3. Powered by Perkins diesel generator as standard model, customizable to special requirement.

4. Collapsible and easy to carry

Description:

Genor Power compact mobile light towers are available with 250, 400, or 1000W halide lights, designed for a compact and efficient installation. You can choose the suitable power and light levels to fit your requirements.

Both the telescoping mast and illumination angle of the lights can be easily adjusted giving the operator great flexibility in lighting the area. The tower is designed to be user friendly in terms of both operation and handling.

Wide Lighting Area

Genor Power light tower parallel lamp structure is more efficient than competitive lighting systems and provides up to 50% more light output. The unique top structure of the lamp shade directs up to 10% of previously wasted upward light directly to the work site.

Dual Application

The generator inside the light tower can be used as back-up power for emergency applications

There are two receptacles on the mast of the light tower. You can switch off the light and then connect another electrical load to get a quality power output from the generator. The receptacles can be configured to your voltage requirements of 110V,120V, 23OV or 240V.

Easy for Transport

The generator powering the light tower can be used a backup power in emergency situations.

There are two receptacles on the light tower mast. You can switch off the lights and then connect another electrical load to get a quality output from the generator.

The receptacles can be configured to your voltage requirement of 110, 120, 230, or 240V.

Advantages of Halide Lamp The internal structure of the metal halide lamp is unique. The light is produced through the discharge of its internal gasses. There is no filament to break or deteriorate over time and no bulb to throw away.

Safe operation

The mast incorporates a safety feature by not permitting the mast to be raised unless the footbrake is on. If the footbrake is release, the mast will automatically lower to the travel position. The light tower trolley has stabilizers to keep the light tower steady on all surfaces.

Applications:

The Genor mobile light tower can be utilized in a variety of situations such as construction sites, disaster recovery, industry, mining, event lighting, asphalt paving, disaster relief, repair and maintenance of water supply, gasoline, tunnels, and waste disposal, parking lot, wharf, civil , and military airport, as well as various illuminations for combat readiness.

Specifications:

Parameters:

Competitive Advantage:

1. Telescopic, mechanical, 3 stages mast up to 9 meters

2. New unique high pressure aluminum lamps

3. Light bar 120°electrical waving

4. Full 360°mast rotation, whilst the tower is fully extended & operation.

5. Individual breaker switch for each light

6. Application: Mining, construction and tunnel applications, defense operations, airports and wharfs, disaster relief and emergency applications, public areas.

Genor Power Equipment Co., Ltd is a Chinese factory producing engine driven welder ,diesel generator set, gas generator set, Marine generator ,silent generators, trailer generators, lighting tower generators, industrial ceiling fan and other industrial equipments.

The welder is from 160A to 1000Amps . The generator power range is from 5KVA to 3000KVA. We also provide relevant accessories processing , and customized generator producing (OEM)service.

Our factory was set up in 2000 and Located in Shenzhen,Guangdong Province,the most advanced area of manufacturing in China.
With the development , we have built the other factory in Shangdong province and have standard assemble workshop, spray paint workshop, sheet-metal workshop and loading testing workshop. we also have advanced equipment such as CNC punching machine, Bending machine, Laser cutting machine, Hydraulic shear machine, Digital Machine Tool, and Electronic Testing system.

Now, We have 3 Chief engineers, 5 Senior Mechanical Engineers, 5 Senior Electrical Engineers and more than 50 technic employees.

Our factory has obtained ISO9001: 2008 certificate, ISO9001:2004 environment certificate ,CE and CCC certificate.
