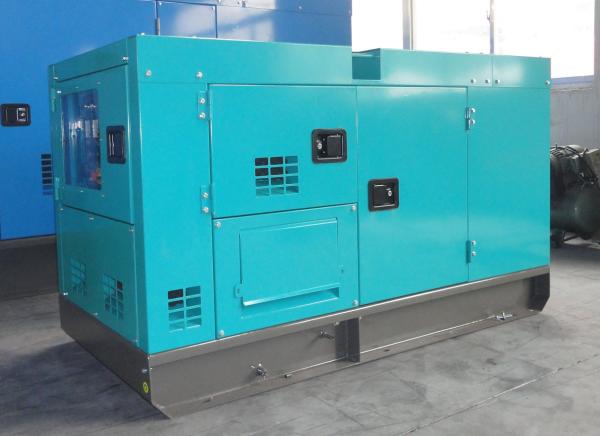

Silent Type Diesel Generator 250 kva
1.UK Perkins diesel engine 1306A-E87TAG6
2 .MARATHON brushless alternator MP-200-4 ,H Class of insulation
3. Noise leverl 1m<80DBA / 7m<70DBA ,LED controller
Brushless UK Perkins Silent Type Diesel Generator Genset 250 KVA
Specifications:
Technical parameters of diesel generator sets: |
Technical data |
Genset Model | GNRP250 |
Prime Power | 250kva |
Rated Voltage | 400/230V |
Frequency | 50Hz |
Power Factor | 0.8(lagging) |
Dimension (L×W×H) (mm) | 2590*1005*1720 |
Genset weight (kg) | 2135 |
Diesel Engine |
Brand | Perkins |
Model | 1306A-E87TAG6 |
Number of Cylinders | 6 |
Total displacement(L) | 2.99 |
Bore (mm)×Stroke(mm) | 116.6*135.9 |
Fuel oil consumption rate g/kw.h | 5.7 |
lubricating oil specification and grade | API-CD class above |
Fuel oil specification and grade | China 0#(Light diesel oil) |
Lubricating system | force and splash lubricating |
Speed adjustment mode | Electron |
Radiator | Introducing advanced technology for high-low water temperature
radiator |
Alternator |
Manufacturer | MARATHON Electric Manufacturing Corporation |
Brand | MARATHON |
Alternator Type | MP-200-4 |
Power factor | 0.8(Lagging) |
Class of insulation | H |
Degree of protection | IP23 |
Voltage regulation | Automatic voltage regulation(AVR) |
Sustained Overexcite Time(s) | ≥5 |
Telephone disturbance | THF less than 2% TIF less than 50 |
Machine winding | 2/3 pitch |
Winding temperature rise | H class |
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation
under all condition
3. Optional accessories available for easy paralleling with mains
or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
