50hp cummins diesel engine fire pump 2500rpm water pumping Mining 6 inch 150GPM

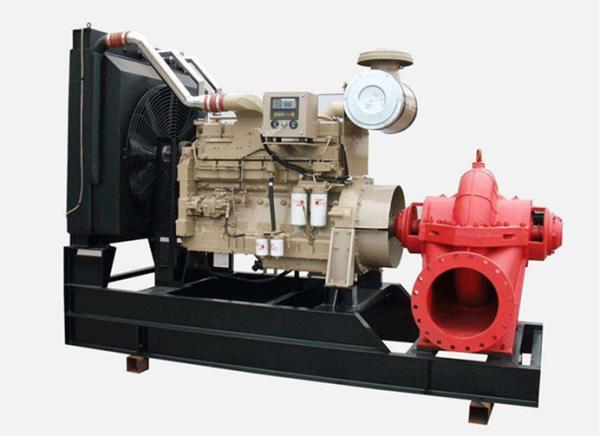

The diesel engine water pump set is equipped with the Cummins diesel engine , high efficiency centrifugal pump and automatic control panel .The diesel engine pump is widely used in Agricultural Irrigation, industrial water supply, fire fighting system, mine industry or other water supply or drawing system .

Engine Features:

1. Genuine Cummins diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

TECHNICAL DESCRIPTION
New standard centrifugal pump
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

1. Specification

2. Advantage of the diesel engine water pump

1) high efficiency, compact structure

2) Excellent & reliable performance

3) High degree of automation

4) Strong overload capacity

5) Dry installed, easy installation and maintenance

3. Application

· Agricultural irrigation , fire fighting system

· Municipal engineering ,Wastewater treatment ,constructional engineering

· Sewage collection or discharge in residential community

· Sewage discharge in hospital and hotel

· Centralized and staged disposal in sewage treatment plant

· Water drainage station

· mine industry etc.

Genor Power Equipment Co., Ltd is a Chinese factory producing engine driven welder ,diesel generator set, gas generator set, Marine generator ,silent generators, trailer generators, lighting tower generators, industrial ceiling fan and other industrial equipments.

The welder is from 160A to 1000Amps . The generator power range is from 5KVA to 3000KVA. We also provide relevant accessories processing , and customized generator producing (OEM)service.

Our factory was set up in 2000 and Located in Shenzhen,Guangdong Province,the most advanced area of manufacturing in China.
With the development , we have built the other factory in Shangdong province and have standard assemble workshop, spray paint workshop, sheet-metal workshop and loading testing workshop. we also have advanced equipment such as CNC punching machine, Bending machine, Laser cutting machine, Hydraulic shear machine, Digital Machine Tool, and Electronic Testing system.

Now, We have 3 Chief engineers, 5 Senior Mechanical Engineers, 5 Senior Electrical Engineers and more than 50 technic employees.

Our factory has obtained ISO9001: 2008 certificate, ISO9001:2004 environment certificate ,CE and CCC certificate.
