Silent 45kva Perkins Diesel Generator Set 1103A-33TG1 Engine Stable Performance

Product Categories

Shenzhen Genor Power Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Silent 45kva Perkins Diesel Generator Set 1103A33TG1 Engine Stable Performance
Brand: Perkins
Price: 1 USD

Add to Cart

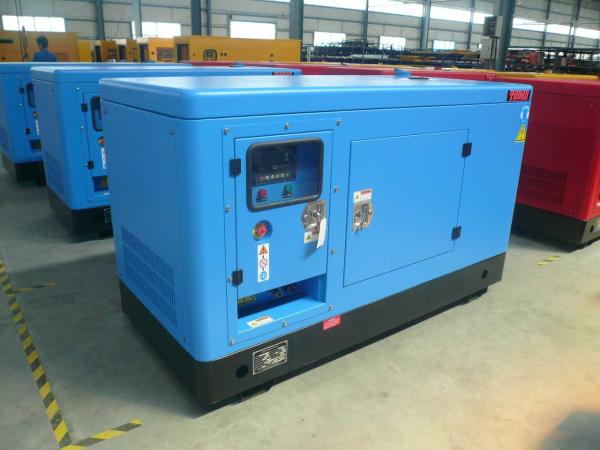

36kw silent 45kva perkins diesel generator set

perkins .jpg

Generator Diesel 40 kw specification

DIESEL GENERATOR SET	Diesel GenSet Model	GNRP45
	Prime power (KW/KVA)	36/45
	Standby power (KW/KVA)	40/50
	Rated voltage(V)	230/400
	Rated current (A)	64.8
	Frequency(Hz)	50
	Rated Rotary Speed (RPM)	1500
	Power factor	0.8
	Power supply mode	3 phase,4wire
	Starting method	24 V DC
ENGINE	Diesel Engine	UK Brand
	Model	1103A-33TG1
	Engine prime power (KW/KVA)	53.8/67.25
	Engine standby power(KW/KVA)	59.18/74
	Cylinder Qty.	3
	Fuel consumption.(g/ kw.h)	215
	Bore(mm) *Stroke (mm)	105*127
	Compression rate	14.5:1
	Cooling liquid volume (L)	60
	Displacement(L)	3.3
	Lubricant capacity (L)	6.2(min)
	Cooling method	Water cooled
	Intake method	Turbocharged
ALTERNATOR	Alternator Features: 1. ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system

PMC System:

1. Standard 23 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment

Silent 45kva Perkins Diesel Generator Set 1103A-33TG1 Engine Stable Performance
