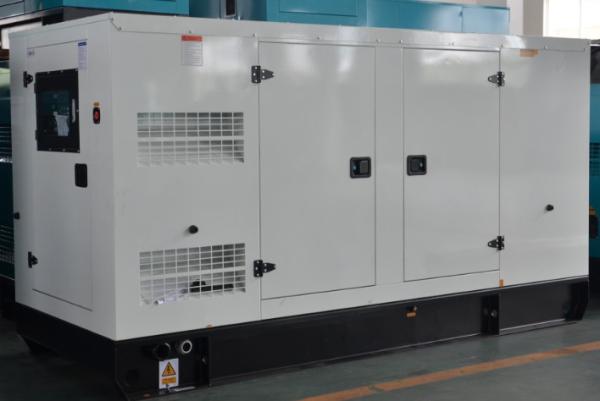

Weather Sound proof 250kva Cummins Genset Diesel Generator 200kw
digital auto start ATS
*Powered by heavy duty cummins industrial diesel engine
*Radiator 50°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage batter
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto
start or ATS system is optional
*10 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load,
75%load, 100%load, 110%
and all protection function(over speed stop, high water
temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2008, CE (ESC/070119), BV
| GENERATOR SET |
| Genset model | GNRC250 |
| Prime power (KW/KVA) | 200/250 |
| Standby power (KW/KVA) | 220/275 |
| Frequency | 50Hz or 60Hz |
| voltage | 220V/380V, 230V/400V, 240V/415V |
| No. of Phase | 3 |
| Genset type | Open skid type |
Reference Dimension & Weight (W*H, mm)/KGS | 2550*1050*1650; 1650kgs |
| DIESEL ENGINE |
| Engine brand & Model | NT855-GA |
| Rated output | 231KW |
| Rated Speed | 1500RPM |
| Engine Type | Vertical in-line, four stroke |
| No. of cylinder | 6 |
| Bore*stroke | 114*144mm |
| Aspiration method | Turbocharged after air-air cooled |
| Governor | Electrical |
| Starting method | Electric starting |
| Cooling method | Forced water cooled |
| Displacement | 14L |
| Compression ratio | 14.5:1 |
| Fuel consumption | 197g/kw.h |
| Speed stability | ≤5% |
| Total lubrication system capacity | 24L |
| Coolant capacity(without radiator) | 12.3L |
| Starter motor | DC24V |
| Alternator | AC24V |
| ALTERNATOR |
| Alternator brand & model | China Stamford |
| Type | Brushless & self-excited |
| No. of phase | 3 |
| Voltage | 400V |
| Frequency | 50HZ |
| Power Factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP22/23 |
| Altitude | ≤1000m |
|
Control Panel
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed,
temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid,
Common steel frame, circuit breaker, damper, exhaust silencer,
flexible pipe, battery and connecting wires, Standard tools kit,
operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator
space heater, cooling for heat exchanger, communication interface,
battery charger by main supply, daily fuel tank, ATS and
paralleling system, soundproof canopy and moving trailer.
