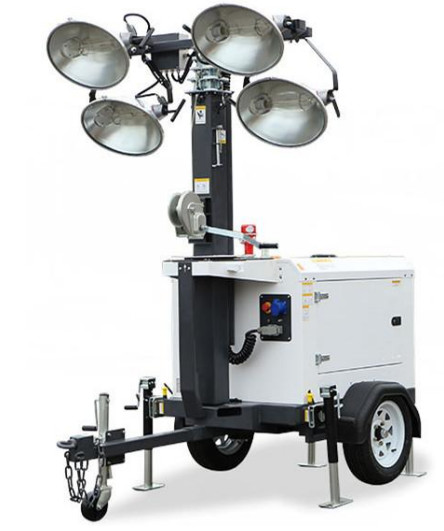

4 * 1000W lamps genset diesel generator Portable Trailer Light
Tower with kubota engine
Quick Detail:
1.World Brand diesel generator set: kubota,perkins .
2.Automatic control panel(AMF), LCD display
3.Telescopic, mechanical, 3 stages mast up to 9 meters
4.New unique high pressure aluminum lamps
Description:
Genor Power compact mobile light towers are available with 250,
400, or 1000W halide lights, designed for a compact and efficient
installation. You can choose the suitable power and light levels to
fit your requirements.
Both the telescoping mast and illumination angle of the lights can
be easily adjusted giving the operator great flexibility in
lighting the area. The tower is designed to be user friendly in
terms of both operation and handling.
Specifications:
Parameters:
| Model | NRL4000 |
| Length (mm) | 2900 |
| Width (mm) | 1150 |
| Height (mm) | 2150 |
| Height( Mast be extended fully,mm) | 9000 |
| Weight ( Dry,kg ) | 800 |
| Continued power(kW) | 8 |
| Combustion type | E-TVS |
| Fuel tank capacity | 100 liters |
| Type of lights | Metal halide floodlight |
| Number & power of lights | 4×1000W |
| Mast lifting & extension | Electric |
| Running hours | 10 hours |
| Voltage | 220V |
| Trailer suspension system | Leaf spring axle |
| Hitch & tow bar | Ball or O ring & stable hitch in height |
Wide Lighting Area
Genor Power light tower parallel lamp structure is more efficient
than competitive lighting systems and provides up to 50% more light
output. The unique top structure of the lamp shade directs up to
10% of previously wasted upward light directly to the work site.
Easy for Transport
The generator powering the light tower can be used a backup power
in emergency situations.
There are two receptacles on the light tower mast. You can switch
off the lights and then connect another electrical load to get a
quality output from the generator.
The receptacles can be configured to your voltage requirement of
110, 120, 230, or 240V.
Advantages of Halide Lamp The internal structure of the metal
halide lamp is unique. The light is produced through the discharge
of its internal gasses. There is no filament to break or
deteriorate over time and no bulb to throw away.
Safe operation
The mast incorporates a safety feature by not permitting the mast
to be raised unless the footbrake is on. If the footbrake is
release, the mast will automatically lower to the travel position.
The light tower trolley has stabilizers to keep the light tower
steady on all surfaces.
Applications:
The Genor mobile light tower can be utilized in a variety of
situations such as construction sites, disaster recovery, industry,
mining, event lighting, asphalt paving, disaster relief, repair and
maintenance of water supply, gasoline, tunnels, and waste disposal,
parking lot, wharf, civil , and military airport, as well as
various illuminations for combat readiness.
Competitive Advantage:
1. Telescopic, mechanical, 3 stages mast up to 9 meters
2. New unique high pressure aluminum lamps
3. Light bar 120°electrical waving
4. Full 360°mast rotation, whilst the tower is fully extended &
operation.
5. Individual breaker switch for each light
6. Application: Mining, construction and tunnel applications,
defense operations, airports and wharfs, disaster relief and
emergency applications, public areas.
