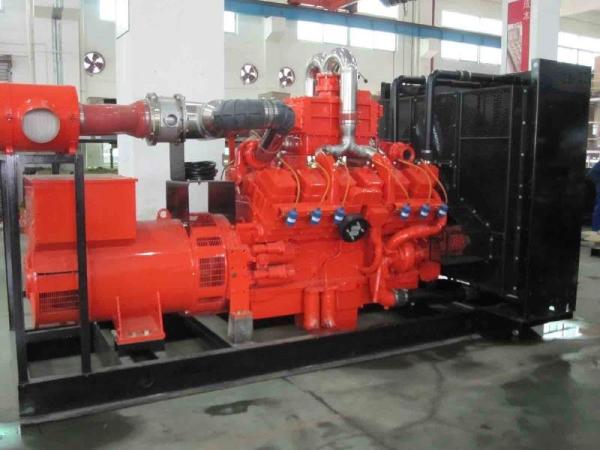

    625kva Natural Gas Generator dustproof With Stamford Brushless Alternator

    Ask Lasest Price
    Certification : ISO9001:2008, CE
    Price : Negotiable
    • Product Details
    • Company Profile

    625kva Natural Gas Generator dustproof With Stamford Brushless Alternator

    625kva Natural Gas Generator dustproof With Stamford Brushless Alternator


    1.high efficiency

    2.best price and good quality

    3.Altronic ignition system


    Specifications:

    Genset Model

    Prime Power

    Standby Power

    Cylinder No.

    Dimension (L×B×H)mm

    KW

    KVA

    KW

    KVA

    GNPG20

    20

    25

    22

    27.5

    4

    2100*730*1575

    GNPG38

    27

    34

    30

    38

    4

    1800*880*1260

    GNPG41

    30

    37.5

    33

    41

    4

    2100*730*1670

    GNPG55

    40

    50

    44

    55

    4

    2100*880*1450

    GNPG78

    56

    70

    62.4

    78

    4

    2100*730*1670

    GNPG104

    75

    94

    83

    104

    6

    2490*830*1770

    GNPG138

    100

    125

    110

    137.5

    6

    2490*830*1770

    GNPG165

    120

    150

    132

    165

    6

    2680*860*1730

    GNPG200

    145

    182

    160

    200

    6

    2680*860*1730

    GNPG220

    160

    200

    176

    220

    6

    2680*860*1730

    GNPG275

    200

    250

    220

    275

    6

    2800*1090*1715

    GNPG308

    224

    280

    246

    308

    6

    2930*1100*1650

    GNPG344

    250

    312

    275

    344

    6

    2930*1100*1650

    GNPG413

    300

    375

    330

    413

    8

    3485*1155*1640

    GNPG495

    360

    450

    396

    495

    8

    3600*1355*1910

    GNPG550

    400

    500

    440

    550

    8

    3600*1355*1910

    GNPG605

    440

    550

    484

    605

    8

    3600*1355*1910

    GNPG688

    500

    625

    550

    688

    8

    3720*1640*2040

    GNPG880

    640

    800

    704

    880

    8

    4660*2090*2320

    GNPG1000

    728

    910

    800

    1000

    12

    4660*2090*2320

    GNPG1141

    830

    1038

    913

    1141

    12

    4660*2090*2320

    1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.

    2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.

    3) Several gensets can be parallel connection or parallel net, which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.

    4) Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .

    5) Self-contained parts of gensets needs few accessories

    6) Economical and low-cost running.

    7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.

    8) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.


    Alternator Features:

    1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga

    2. Brushless, 4 poles, rotation magnet

    3. IP21-23(NEMA1) enclose is standard for all industrial alternators

    4. H class insulation system

    5. AVR self-regulated, voltage regulation rate: ≤±1%

    6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

    7. Wide range of flange adaptors and single bearing disc coupling

    8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

    9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof


    Digital Control panel

    Controller Brand: Smartgen, Deepsea,ComAp

    Control Panel: English interface,LED screen and touch buttons.

    Main Functions:

    1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

    2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

    3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

    Accessories

    1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

    2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.


    Warranty policy

    Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
