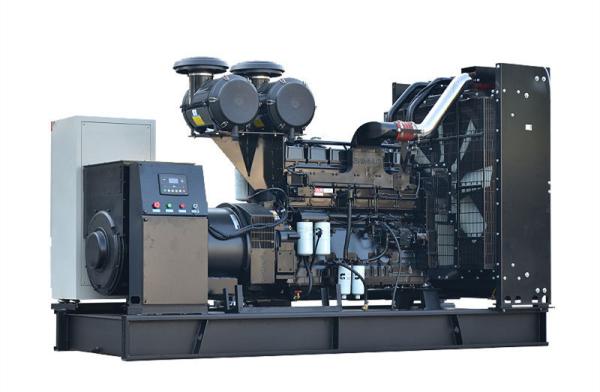

fuel air filter 1MW 1250kva Cummins 12 cylinders engine Diesel
Generator leroy somer alternator
Engine Features:
2. Multi-cylinder in-line or veer engine, 4-stroke, direct
injection
3. Turbocharged, water cooled or turbocharged with air intercooler
4. Electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet
type cylinder liner
8. Low discharge, and low fuel consumption
Alternator Features:
1. World famous brand AC alternator Stamford
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial
alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to
terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of
VDE0875-N and ISO8528
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the
water is over temperature, the oil pulls down, over speed, over
load and over current
b) Operation display:
1) Unit voltage, tri-phase load current and frequency display
2) Water temperature, oil pressure display
3) Fuel level, fuel temperature display
4) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the
requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler
